PCB & Hardware Designs

Custom circuit board designs and hardware prototypes

PCB Board Design

VCU Board

The central brain of the electric vehicle. It manages driver inputs, controls auxiliary systems (lights, horn), and communicates with the battery and motor controller to ensure safe and efficient operation.

GitHub Board Details
PCB Board Design

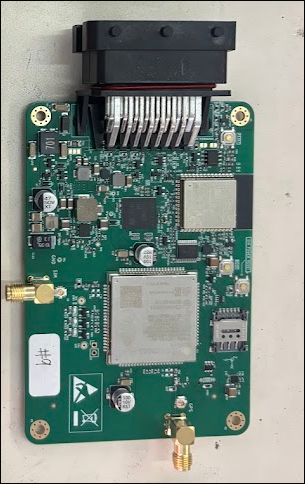

Communication Board

A comprehensive communication module enabling remote connectivity via LTE/4G, Wi-Fi, and BLE. Features an automotive-grade CAN 2.0 interface for real-time telemetry and vehicle tracking.

GitHub Board Details
PCB Board Design

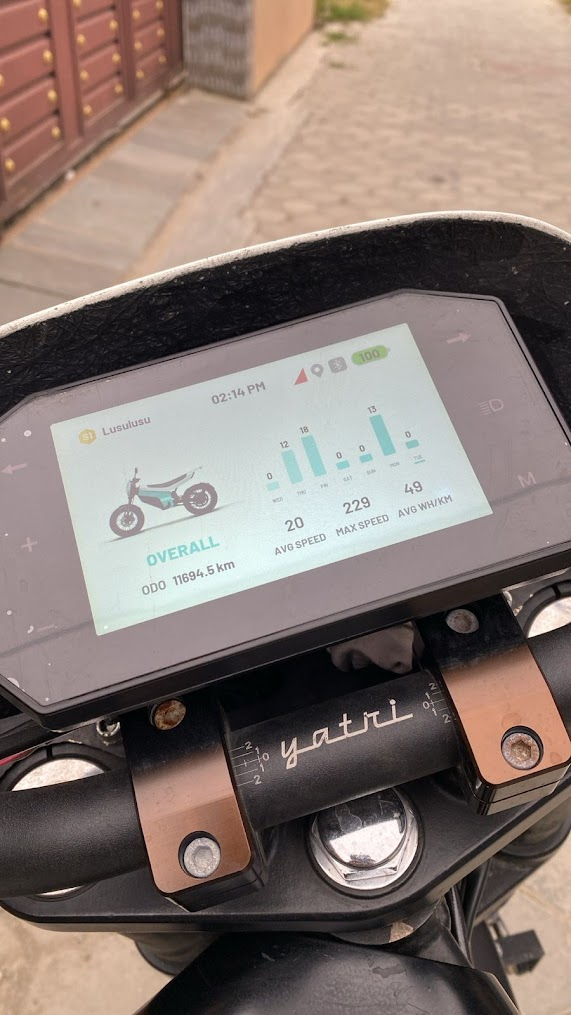

Dashboard Unit

High-performance dashboard display driver with ARM core architecture. Supports high-resolution TFT displays and integrates seamlessly via CAN/SPI. Features robust 12V power architecture with EMI suppression for automotive environments.

GitHub Board Details

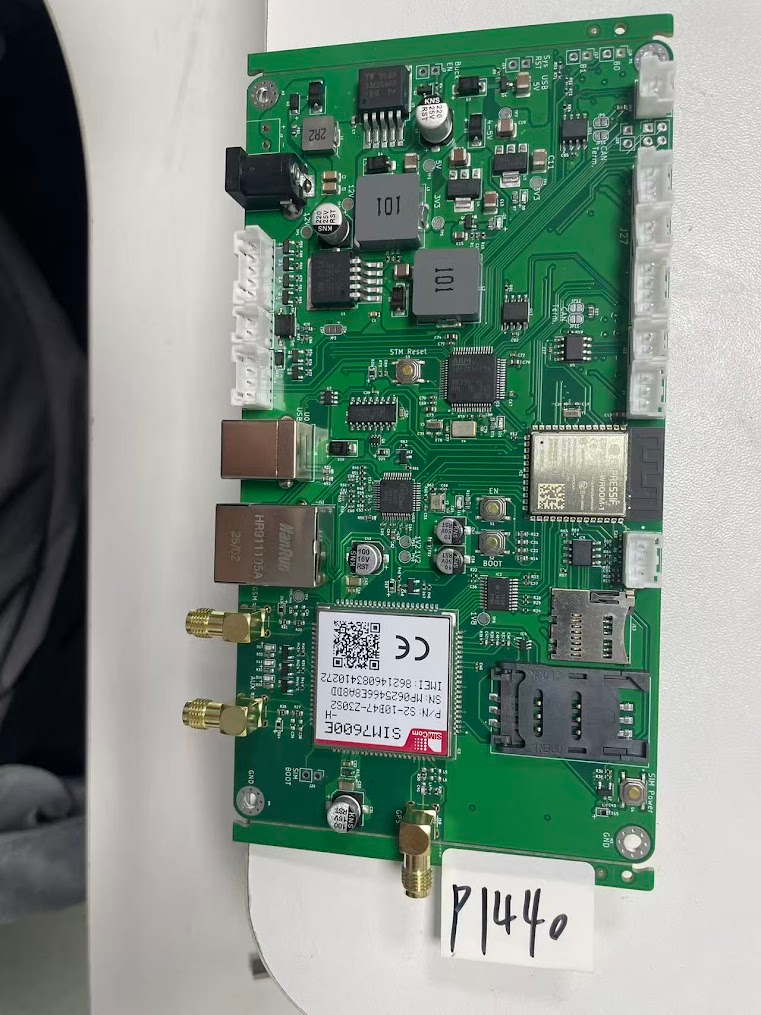

CMS Board Design

CMS Board

Advanced Charging Management System with 4G/LTE, WiFi, and Ethernet connectivity. Features automatic network failover, RFID authentication, and Fan Control. Designed for 2-wheeler and 4-wheeler EV chargers with robust noise filtering.

Designed Board Details

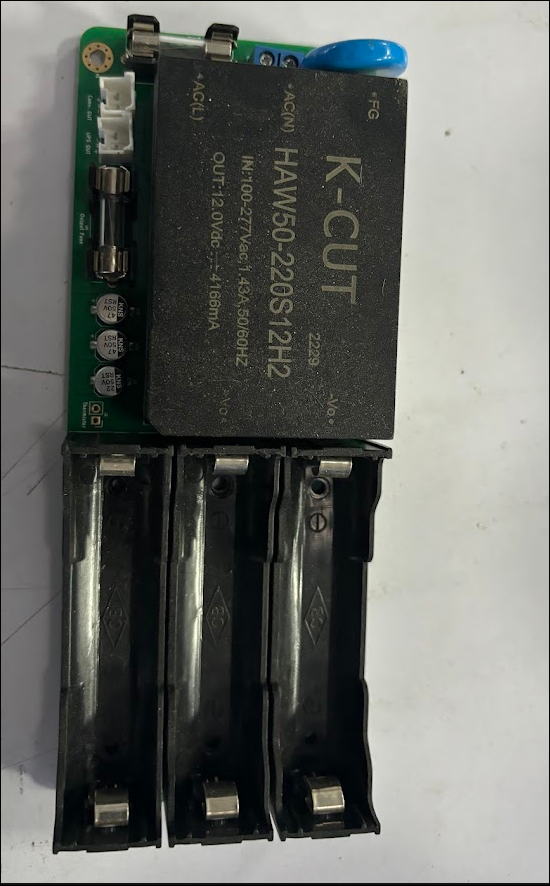

PMS Board Design

PMS Board

Intelligent Power Management System converting 85V-220V AC to 12V DC (4A). Features zero-latency (<10µs) UPS switching with onboard Li-ion battery backup. Ensures continuous operation for critical embedded systems.

Designed Board Details

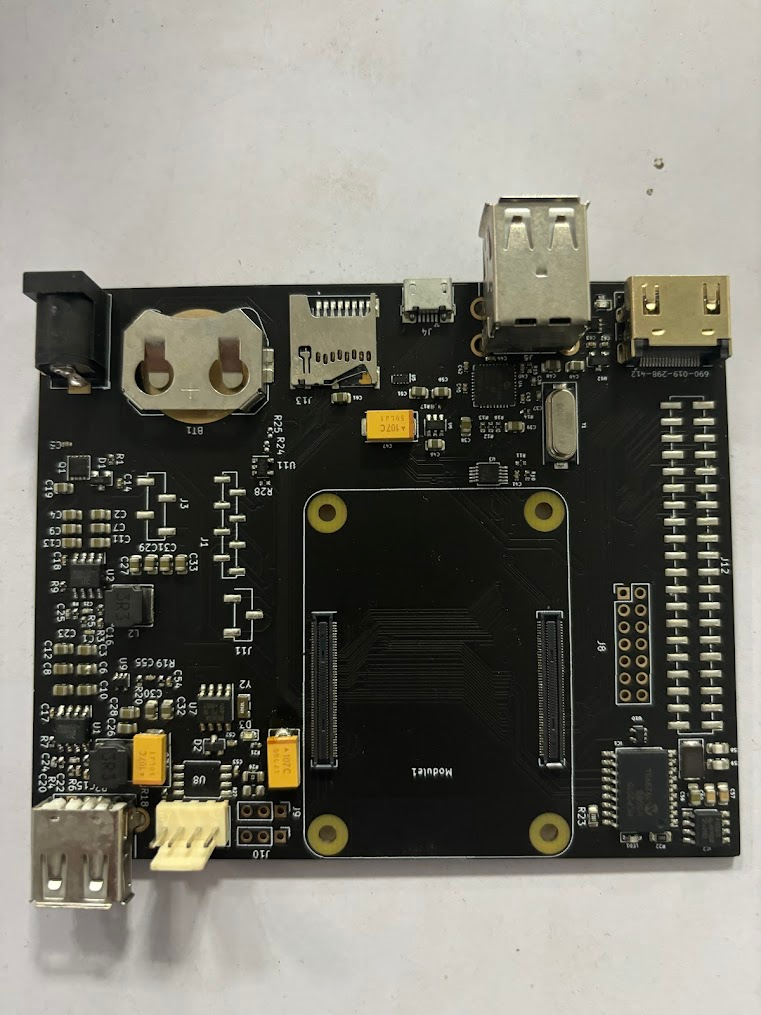

CM4 Carrier Board

CM4 Carrier Board

Custom Raspberry Pi CM4 carrier board designed for high-end display and HMI applications. Features HDMI output, RTC, CAN bus, and dual 5V regulators with fan control. Robust 12V input with extensive I/O (USB, GPIO, SD Card).

Designed Board Details

Industrial & Utility Modules

RS-232 to CAN Converter

RS-232 to CAN Gateway

Industrial grade protocol converter bridging RS-232 and CAN 2.0B. Features dual-channel CAN, RF/NRF card reader support, and automotive-grade 12V inputs. Ideal for secure user authentication systems and industrial automation.

Designed Board Details
4-Channel CAN Multiplexer

4-Channel CAN Hub

High-performance CAN Multiplexer using 480MHz RISC-V architecture. Aggregates 4 isolated CAN buses (GBT, CCS2.0) into a single master bus. Features advanced error monitoring and high-traffic load handling for fast charging stations.

Designed Board Details
Remote Monitoring System

Remote Monitoring System

Unified single-board monitoring for SRT, SMG, and SWP systems. Measures 1000V DC, 500A AC, and Solar parameters with GSM connectivity. Features AC surge protection, DC filtering, and real-time telemetry.

Designed Board Details

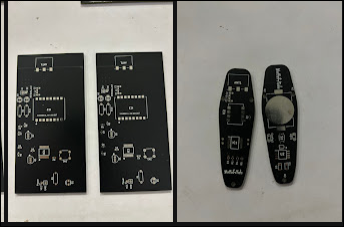

Secure Wireless Access System

Secure Wireless Access System

Complete secure access solution comprising a low-power Key Fob (2.0-3.1V) and a Receiver Unit. Features 3-button control, secure rolling code transmission, and seamless VCU integration.

Designed Board Details
USB PD Adapter

USB PD Adapter

USB Power Delivery trigger and monitoring board. Enables use of USB Type-C PD power supplies with selectable voltages and high currents for your projects. Features OLED display for monitoring V, I, P, and E.

Designed Board Details
